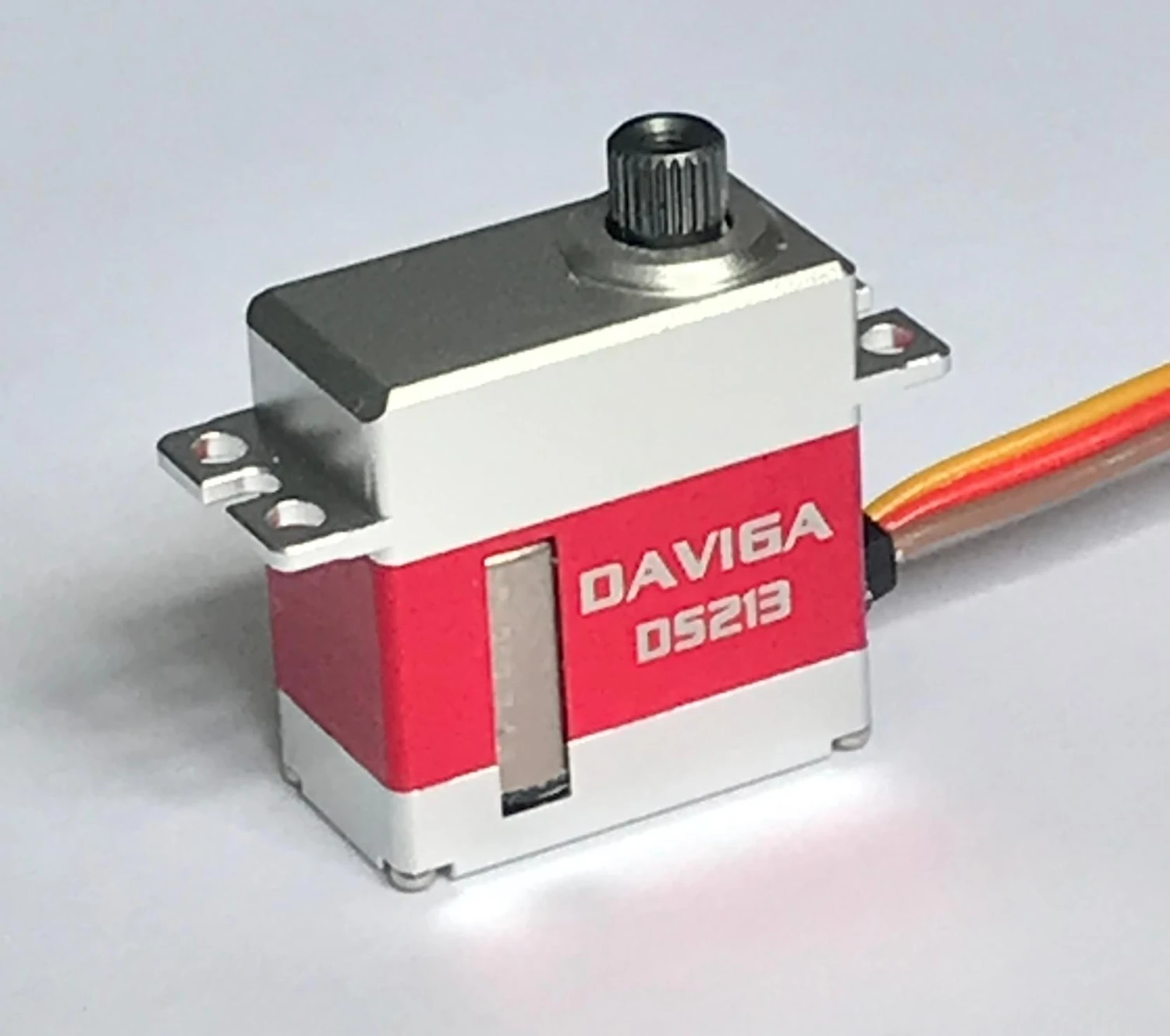

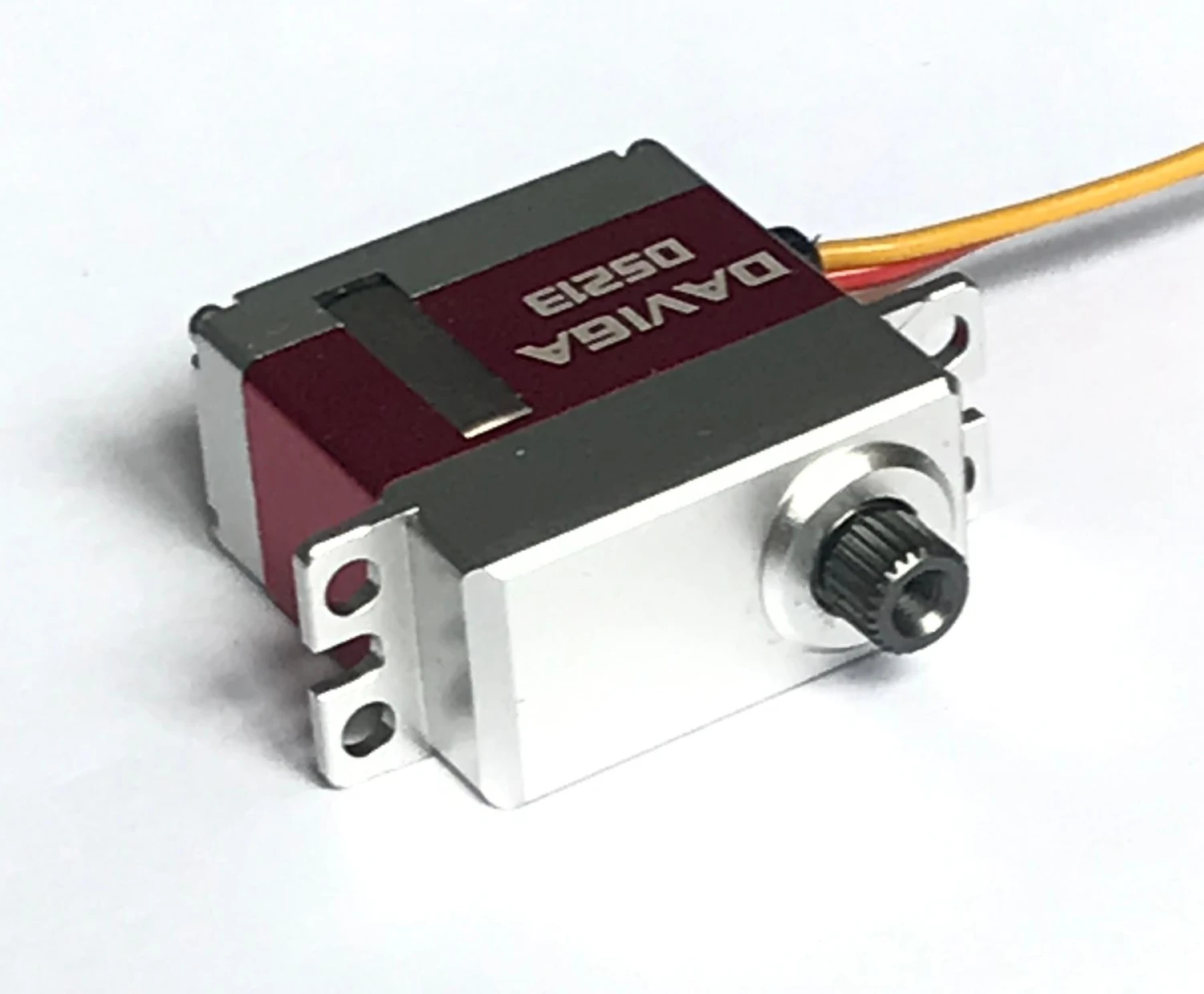

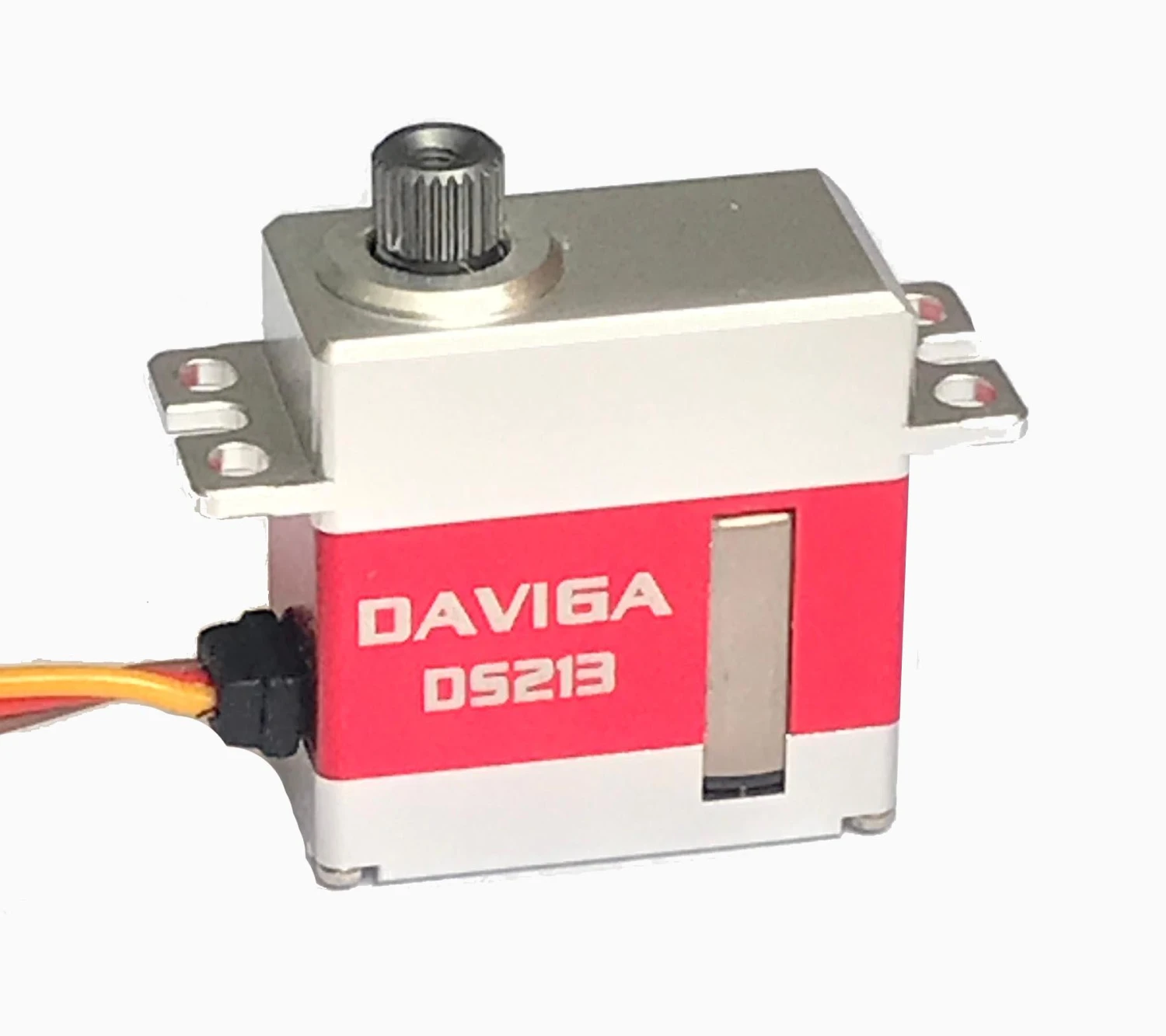

KST Daviga DS213Servo – 3.0Kg.cm 0.06s 16.5g 12mm

The KST DS213 servo is an blisteringly fast metal cased high voltage servo. With 3.0 kg.cm of torque, and a rotational velocity of 0.08 sec/60° it combines good power with great precision and market leading speed.

Weighing only 16.5 g it is a great servo for glider elevator & rudder and heli cyclic & tail rotor. Also popular on RC EDF jets. The KST DS213 is designed for use with 4S-5S NiMH cells or a regulated 2S LiFe or 2S LiPo battery.

KST DS213 Features

• Compatible 12 mm body
• Excellent speed & torque
• Compact and light weight design
• Designed for NiMH batteries – 4.8V to 6V voltage range
• Excellent heat dissipation
• 7075 Alloy casing
• Hardened Steel gears
• Designed for lightweight high performance RC Gliders and helicopters

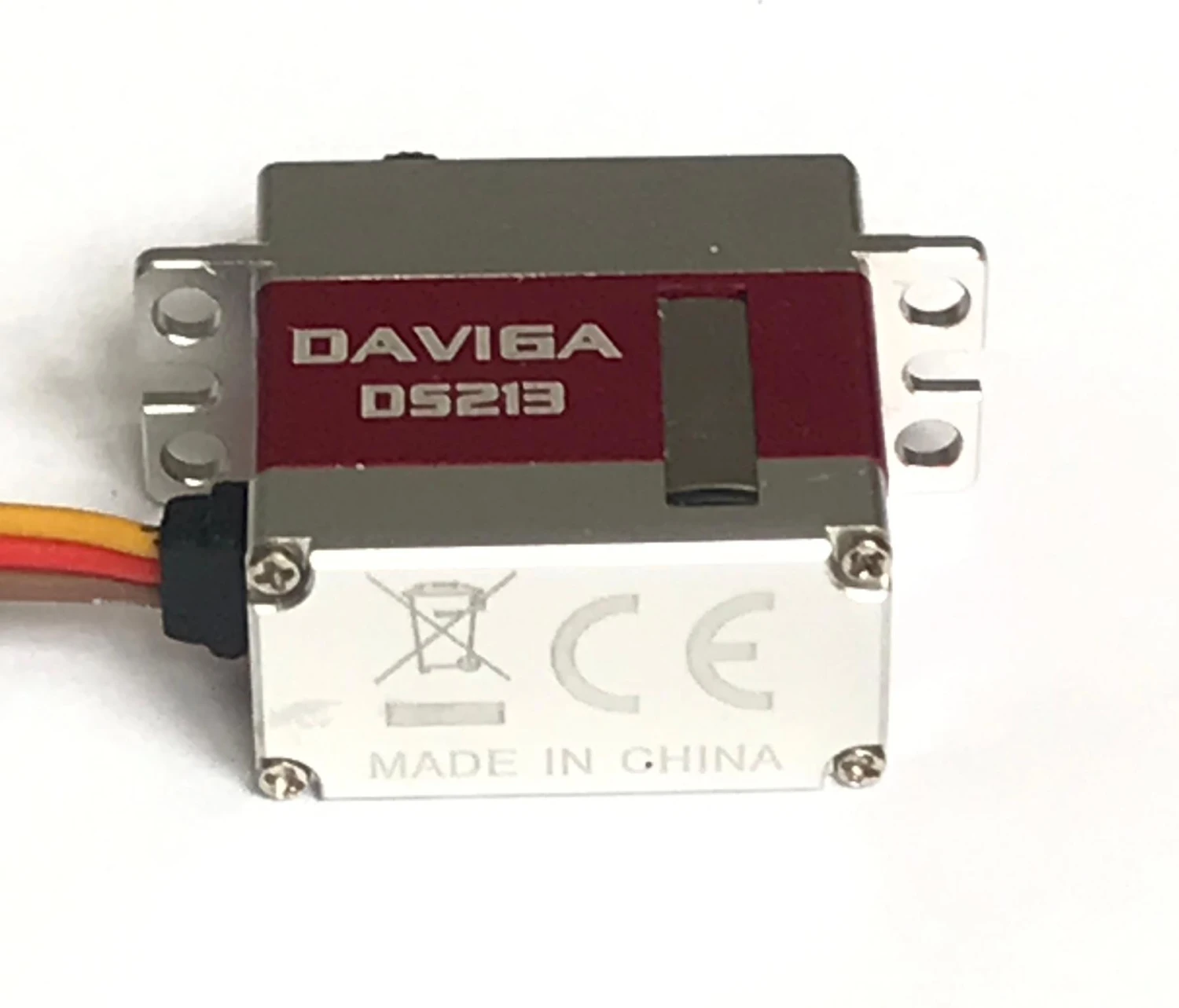

The current stock is lableled Daviga DS213, but these are genuine KST servos.

KST Daviga DS213 Servo Specifications
Body dimensions	23.0 mm wide x 12.0 mm thick x 23.5 mm high	0.91″ wide x 0.47″ thick x 0.93″ high
Max dimensions	32.0 mm wide x 12.0 mm thick x 28.5 mm high	1.26″ wide x 0.47″ thick x 1.12″ high
Stall torque (4.8V)	2.5 Kg.cm	35 oz.in
Stall torque (5V)	2.6 Kg.cm	36 oz.in
Stall torque (6V)	3 Kg.cm	42 oz.in
Weight	16.5 g	0.58 oz
Lead length	21 cm	8.3 in
Operating speed (4.8V)	0.08 sec/60°
Operating speed (5V)	0.07 sec/60°
Operating speed (6V)	0.06 sec/60°
Operating voltage	4.8V to 6V
Operating temperature	-10 – +50 °C
Bearings	2 ball races
Gear material	Hardened steel
Case material	7075 aluminium
Motor type	Coreless DC
Working frequency	333 Hz
Dead band/resolution	2 µs
Pulse width for ± 60º	900-2100 µs
Digital	Yes
Programmable	No
Position feedback	Potentiometer
Supplied accessories	3 plastic output arms, 2 arm retaining screws, 2 mounting screws
Optional accessories	KST 25T-5 Metal Servo Output Arm, KST 25T-5 Heavy Duty Servo Output Arms, Gear Set for KST X10
