Dream-Flight Weasel-Trek 90cm

The Weasel-Trek is the new 90 cm (35″) stowable slope flying wing from Dream Flight. Intended for higher wind speeds than the Alula, the Weasel gives insane slope fun without costing the Earth or taking up too much space. It is the latest version of the popular RC sloper from Dream-Flight. The ultra lightweight and packable airframe is perfect for travel and exploration, assembling in minutes without glue! Whether at a coastal dune, mountain ridge, the only limit is your soaring imagination. Spend less time inside building and more time outside flying, with Dream-Flight.

The Weasel-Trek was developed from the ground up to provide pilots of all skill levels a unique RC sloping experience with minimal building skills required. Getting into the air has never been easier.

Kit Features

• “ARG” Almost Ready to Glide – NO GLUE interlocking design uses rare earth magnets.
• Wide flight envelope for smooth, easy gliding or aggressive in-your-face slope aerobatics.
• Precision-molded EPO foam and composite parts ensure a lightweight and durable airframe.

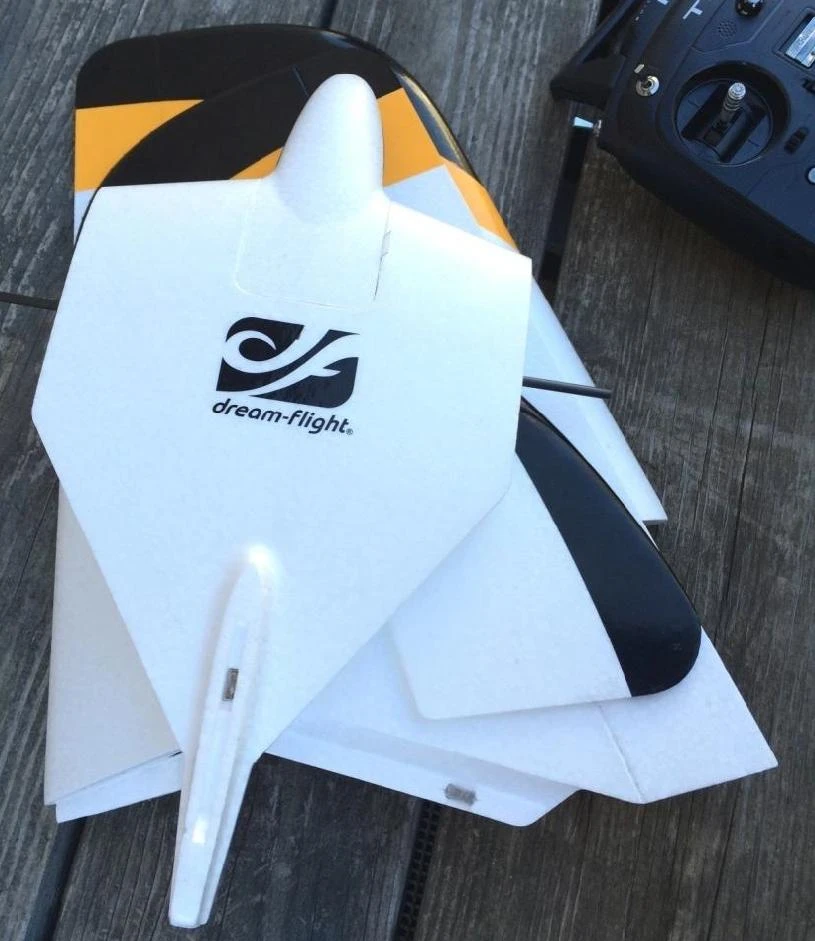

• Wing retention system allows for quick break down and assembly at any location.
• Integrally molded control surfaces for minimum weight and building ease.
• Easy to launch – molded finger pocket makes for easy launching in all conditions.
• Integrated ballast compartment – quickly adapt to varying wind conditions.
• Complete hardware package includes light linkages, carbon-fibre pushrods, decals and more.
• All pushrods and clevises, for connecting the servos to the control surfaces are included.
• Detailed construction manual for easy assembly in approximately one hour.
• Designed to go where your spirit for adventure leads you!

Items Required for Completion
Transmitter with programmable elevon mixing and adjustable dual rates
Micro receiver, such as Futaba R2106GF
2 Sub-micro servos
Receiver battery: 4.8V 750 mAh 5/4AAA NiMH
Small tools.

Many thanks to David Hogg for his great photos.

Dream-Flight Weasel Trek Specifications
Wing span	90 cm	35.4 in
Wing area	23.42 dm2	363 sq in
Flying weight from	312 g	11.5 oz
Wing loading from	13.3 g/dm2	4.6 oz/ft2
Wing airfoil	Proprietary
Controls	Elevons

Recommended R/C-nano gear only
Elevon servos (2)	Dream-Flight 12.4g, MKS DS75K, Ripmax SD100, Ripmax SD150, Blue Bird BMS-101AMG, Blue Bird BMS-101DMG, Blue Bird BMS-101HV, KST X08
Receivers	2+ channel rx to suit your transmitter, eg Spektrum AR6270T, AR6260, AR6100e, Futaba R2106GF, FrSky X4R, Orange DSM2 compatible, Jeti Duplex R5, Multiplex Mlink RX-6-DR Light
Battery	Dream-Flight 750 mAh 4.8V NiMH, HyperLiPo 2S 300 mAh

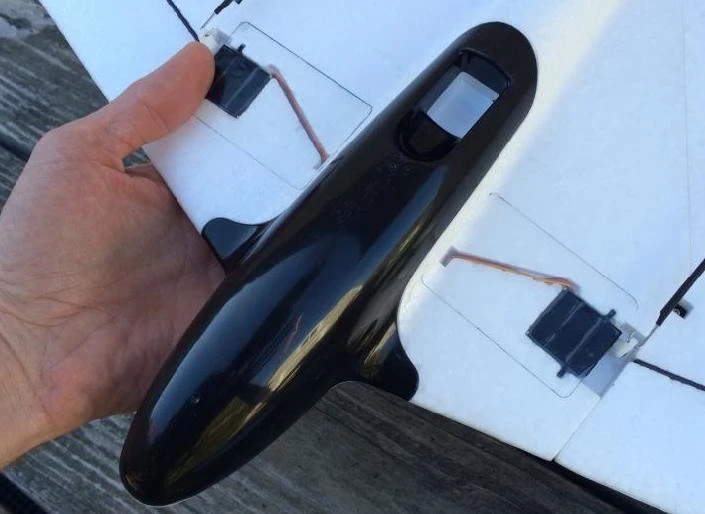

Note the model is designed around the Dream-Flight 12.4 g Digital Metal Gear servo and this is recommended as it will fit without any modification to the foam structure. However other servos can be fitted easily by the more experienced modeller. If fitting a LiPo battery make sure the servos can operate at this voltage – the Dream Flight servos can’t.

See the PDF for more info.
