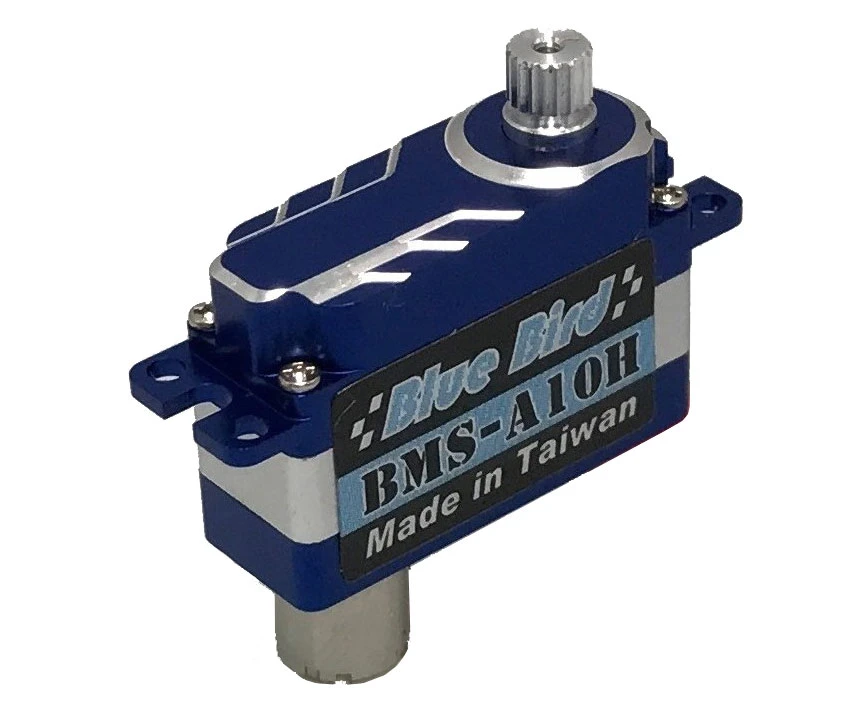

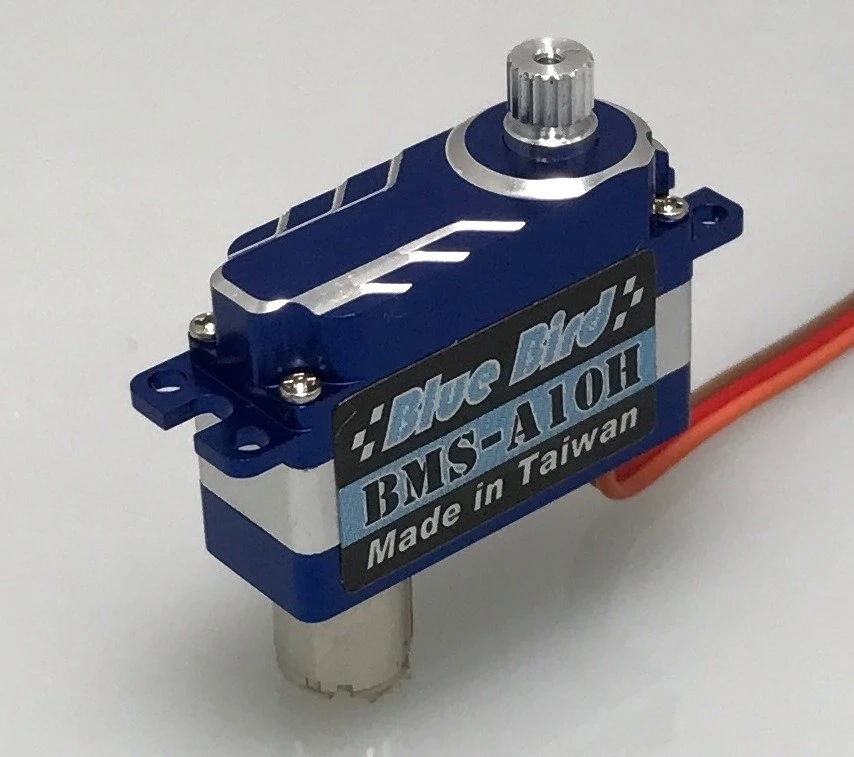

Blue Bird BMS-A10H Servo – 3.2Kg.cm 0.07s 7.4g 8mm

The Blue Bird BMS-A10H is a great new wide voltage range (WV) servo with amazing torque, speed and precision in a tiny case only 8 mm thick. The H suffix relates to the horizontal (conventional) servo mounting lugs fitted, making this servo ideal for fuselage mounting.

With a weight of 7.4 g and a speed of 0.07 sec/60° the Blue Bird BMS-A10H is ideal for DLGs, F3K, F3P, F5J, and all electric racers, small gliders and 3D RC models. Being so thin and lightweight the A10 is also ideal for installation in the tail surfaces of larger models.

With a wide voltage range from 3.7V to 8.4V the BlueBird A10-H works perfectly on 1S and 2S LiPo, and well as 4 and 5 cell NiMH batteries.

Blue Bird BMS-A10H Servo Specifications
Body dimensions	22.0 mm wide x 8.0 mm thick x 15.3 mm high	0.87″ wide x 0.31″ thick x 0.60″ high
Max dimensions	28.0 mm wide x 8.0 mm thick x 25.3 mm high	1.10″ wide x 0.31″ thick x 1.00″ high
Stall torque (3.7V)	1.6 Kg.cm	22 oz.in
Stall torque (6V)	2.4 Kg.cm	33 oz.in
Stall torque (8.4V)	3.2 Kg.cm	44 oz.in
Weight	7.4 g	0.26 oz
Lead length	15 cm	5.9 in
Operating speed (3.7V)	0.15 sec/60°
Operating speed (6V)	0.1 sec/60°
Operating speed (8.4V)	0.07 sec/60°
Operating voltage	3.7V to 8.4V
Operating temperature	-20 to 60 °C
Bearings	2 ball bearings
Gear material	Precision metal
Case material	Aluminium alloy
Motor type	Coreless
Working frequency	333 Hz
Dead band/resolution	2 µs
Pulse width for ± 60º	1100 – 1900 µs µs
Digital	Yes
Programmable	No
Position feedback	Potentiometer

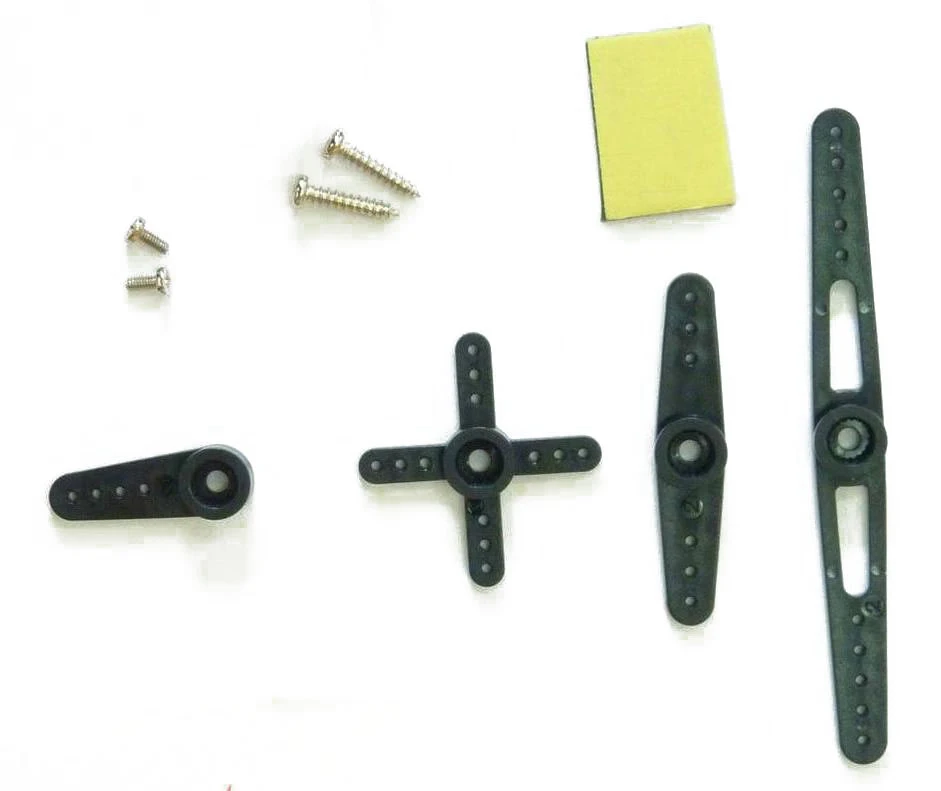

Supplied accessories	4 plastic output arms, 2 arm retaining screw, 2 mounting screws
